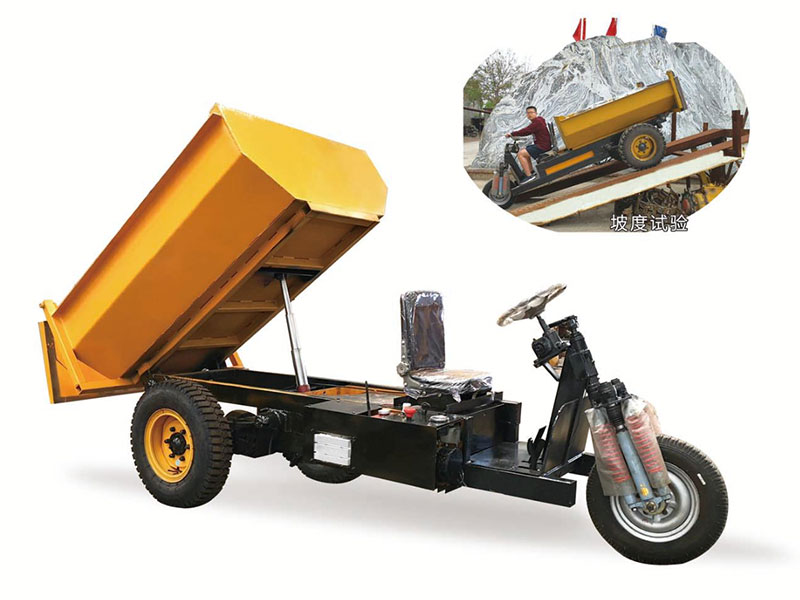

2, 3, and 5-ton three-wheeled transport vehicles
2, 3, and 5-ton three-wheeled transport vehicles
Gross weight (kg): 1200-1950
Loading capacity (T): 2-5T
Engine power (Kw): 5.5-7.5
Contact Us

Product Introduction

Mining transfer vehicle, also known as "four-unlike vehicle," is mainly used for transporting ores, mud, etc., in mines, underground tunnels, and surface industrial sites. As a new auxiliary transportation method, it features strong load-bearing capacity, flexible operation, excellent climbing ability, and multifunctional advantages. Its main components include the steering wheel, chassis, front and rear axles, etc. The power can be provided by batteries or diesel engines, with a loading capacity ranging from 2 to 8 tons. The transfer vehicle can be equipped with power steering, foam tire pressurization, and the cab engine can have single-cylinder, dual-cylinder, four-cylinder, or six-cylinder models for the rear axle, chassis, and wheels (available in dual-top or single-top configurations, equipped with a gearbox). The cargo box: width 1.6-2.2 meters, length and height can be customized according to customer requirements.

Technical Parameters
Serial NumberProject2T Three-Wheel Transfer Cart3T Three-Wheel Transport Cart5T Three-Wheel Transfer Cart
1Dimensions3750*1350*1400mm3750*1500*1400mm3750*1650*1500mm
2Cargo container dimensions2000*1350*500mm2000*1500*500mm2000*1650*500mm
3Panel thickness5mm8mm8mm
4Tire Model650-16750-16750-16
5Total mass1200kg1600kg1950kg
6Payload2000kg3000kg5000kg
7Steering methodHandlebar-styleHandlebar-styleHandlebar-style
8BrakingOil brake with combined oil reduction and magnetic braking
Hydraulic Brakes Combined with Electromagnetic BrakingHydraulic Brakes Combined with Electromagnetic Braking
9voltage60V
72V72V
10Electric current150A180A180A
11Operating speed12 km/h15 km/h15 km/h
12Walking Motor Power5.5kw5.5kw7.5kw
13Climbing a slope18 degrees18 degrees18 degrees
14Increase motor power1.2kw1.5kw1.5kw
15Battery180A × 12 pieces180A × 12 pieces180A × 12 pieces
16Number of springs7 pieces9 pieces11 pieces
17Charging voltage72V72V72V
18Charging time8 hours (adjustable)8 hours (adjustable)8 hours (adjustable)
