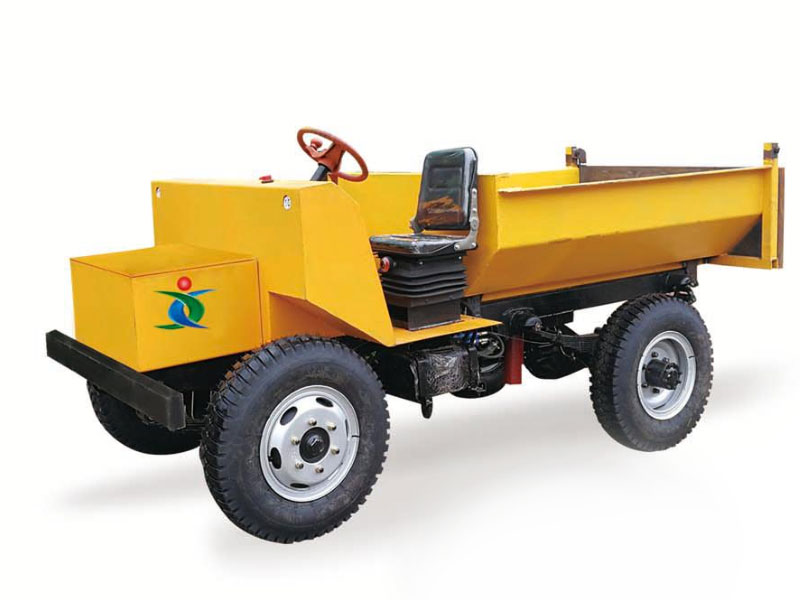

3, 5, and 8-ton four-wheel transfer vehicles
3, 5, and 8-ton four-wheel transfer vehicles
Gross weight (kg): 1450-2150
Loading capacity (T): 3-8
Engine power (Kw): 5-10
Contact Us

Product Introduction

Mining transfer vehicle, also known as "four-unlike vehicle," is mainly used for transporting ores, mud, etc., in mines, underground tunnels, and surface industrial sites. As a new auxiliary transportation method, it features strong load-bearing capacity, flexible operation, excellent climbing ability, and multifunctional advantages. Its main components include the steering wheel, chassis, front and rear axles, etc. The power can be provided by batteries or diesel engines, with a loading capacity ranging from 2 to 8 tons. The transfer vehicle can be equipped with power steering, foam tire pressurization, and the cab engine can have single-cylinder, dual-cylinder, four-cylinder, or six-cylinder models for the rear axle, chassis, and wheels (available in dual-top or single-top configurations, equipped with a gearbox). The cargo box: width 1.6-2.2 meters, length and height can be customized according to customer requirements.

Technical Parameters
Serial NumberProject3T Four-Wheel Transfer Cart4T Four-Wheel Transfer Cart8T Four-Wheel Transfer Cart
1Dimensions3700*1500*1500mm3700*1500*1500mm4500*1900*1800mm
2Cargo Bay External Dimensions2000*1500*500mm2000*1500*500mm3000*1900*700mm
3Total mass1450kg1950kg2150kg
4Rated Mass3000kg5000kg8000kg
5Number of shafts222
6Wheelbase2740mm2740mm3500mm
7Steering methodSteering wheel-typeSteering wheel-typeSteering wheel-type
8rear axleFifty-horsepower rear axle
Isuzu Rear Axle1058
9BrakingOil brake
Oil brakesAir brake failure
10Drive methodRotary shaft driveRotary shaft driveRotary shaft drive
11Vehicle speedLow: 10 kWh High: 18 kWhLow: 10 kWh High: 18 kWh
12Walking Motor5kW brushless motor7.5 kW brushless motor10kw
13Battery180A battery × 6 units180A battery × 6 units180A battery × 12 units
14Cargo container thickness6mm steel plate6mm steel plate8mm steel plate
15Tire700-16750-16700×16 (rear dual wheels)
16Ground clearance230mm230mm230mm
17Number of leaf springs9 pieces11 piecesFirst 10, Last 10, +7
