I. Physical Characteristics

The wheel bucket excavator can excavate materials from grade Ⅴ to grade X.

II. Machine Specifications

Rated loading capacity: 1000m³/h

Loading height: 7.5m

Power supply method: Diesel generator set, city power; customer optional.

Power supply voltage: 220/380V;

Power supply frequency: 50HZ;

III. Machine Load

Total installed power: 228KW

Total equipment weight: 180T;

IV. Bucket Wheel Structure

Bucket wheel diameter: 6.0m;

Bucket wheel rotation speed: 2~7r/min;

Number of buckets: 12;

Bucket capacity: 0.28m³;

Drive device form: Motor-reducer;

Motor power: 132KW;

V. Bucket Wheel Luffing Mechanism

Luffing mechanism form: Hydraulic integral amplitude variation;

Amplitude rising speed (bucket wheel center): 4m/min; customizable. Amplitude lowering speed (bucket wheel center): 5m/min; customizable.

Luffing range: +12.8°~-13.2°; customizable.

Drive device: Motor-oil pump-double acting oil cylinder;

VI. Main Applications

The wheel bucket excavator is particularly suitable for large-scale earthwork operations in open-pit mines (e.g., road transport rivers or dams) and storage yard applications. In open-pit mines, there are significant differences in the requirements for excavation scale, so various different excavation equipment can be adopted, and different machine types can form combined machine groups as follows:

1. Giant bucket wheel excavator with conveyor bridge and transfer machine.

2. Wheel bucket excavator loading materials to heavy trucks.

3. Wheel bucket excavator's unloading arm feeding materials to conveyor on working face.

4. Combined machine group composed of wheel bucket excavator and transfer machine.

VII. Product Highlights

(1) The wheel bucket excavator has high continuous production efficiency, large excavation volume, long service life, and can achieve good economic benefits.

(2) Standardized, serialized, and generalized, the product manufacturing process is optimized, which is more conducive to maintenance and repair.

(3) High degree of electrical automation, achieving automatic control and remote control.

(4) The wheel bucket excavator has large cutting force, strong excavation capacity, and high efficiency.

VIII. Main Technical Parameters:

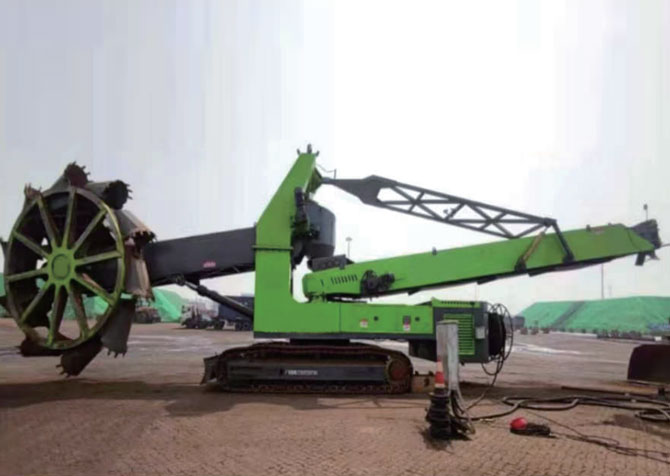

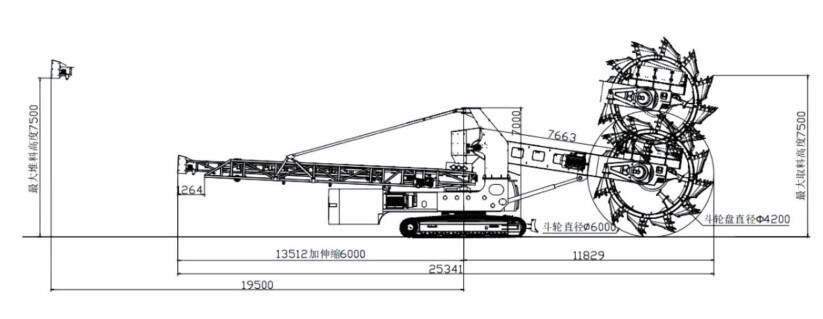

JHYL-1000 Bucket Wheel Excavator
