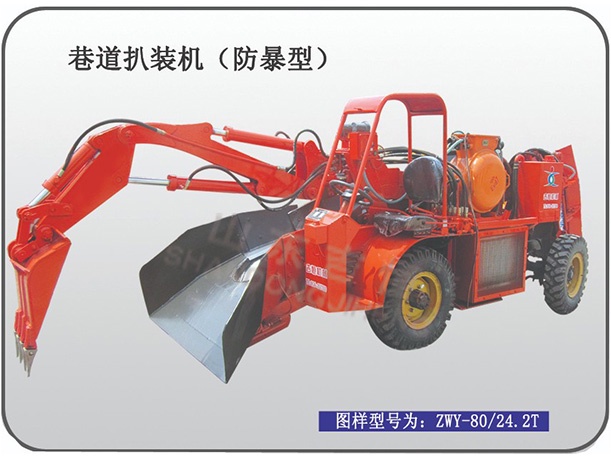

ZWY-80 24.2-Ton Explosion-Proof Rock Breaker

Total machine weight (kg): 4500±200kg Loading capacity (m³/h): ≥60m³/h Total machine power (kW): 17.2Tkw

Product Introduction

Serial Number	Item	Unit	ZWY-60/17.2L	ZWY-80/24.2L
1	Loading Capacity	m³/h	≥60	≥80
2	Machine weight	kg	4500±200	4800±200
3	Turning radius	m	≤4	≤4
4	Excavation width	mm	≥2600	≥2800
5	Excavation height	mm	≥3000	≥3600
6	Dig deeper	mm	≥700	≥700
7	Excavation distance	mm	≥1300	≥1300
8	Loading width	mm	≥2400	≥2600
9	Unloading Height	mm	≥1400	≥1600
10	Gradeability	(°)	-18~+18	-18~+18
11	Travel Speed	Km/h	0.70±0.03	0.70±0.03
12	Ground Clearance	mm	≥200	≥200
13	Rated working pressure	mpa	16	16
14	Safety valve opening pressure	mpa	19.2	19.2
15	noise	dB(A)	≤90	≤90
16	Total motor power	kw	17.2T	24.2T
17	External dimensions (length * width * height)	Shipping status mm	550016001700	580017001800

Technical parameters

Optional components

1. The three-section boom loader (with breaker hammer) is suitable for coal roadway excavation, coal roadway opening, and rapid slag removal in semi-coal-rock roadway excavation. The three-section boom loader can make up for the dead angles that the standard two-section boom loader cannot reach, and increase the working range.
2. In non-coal mines, diesel engines can be used to power the muck loaders, making the equipment highly mobile and easy to move between sites. It is suitable for frequent relocation and long-distance tunnels, and can also achieve hybrid power.
3. The cable reel enables flexible and automatic cable winding and unwinding for equipment entry and exit, saving manpower and resources, increasing the degree of automation, and making it easier for loaders to enter and exit the site.


