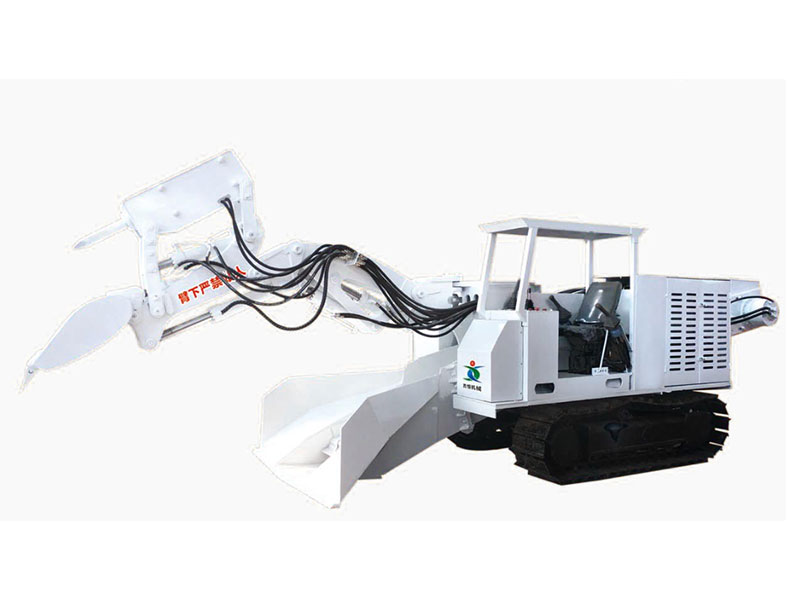

Rock Breaker

Machine Weight (kg): 6800-19200
Loading Capacity (m³/h): 60-180
Machine Power (Kw): 22-75

Product Introduction

In addition to the standard excavator functions, this machine features a quick coupler that enables rapid switching between bucket, breaker hammer, and other attachments within one minute. It is capable of breaking tunnel floor plates, sidewall bases, and large post-blast rocks or coal blocks for maintenance purposes. The design also facilitates easy transportation and assembly/disassembly.

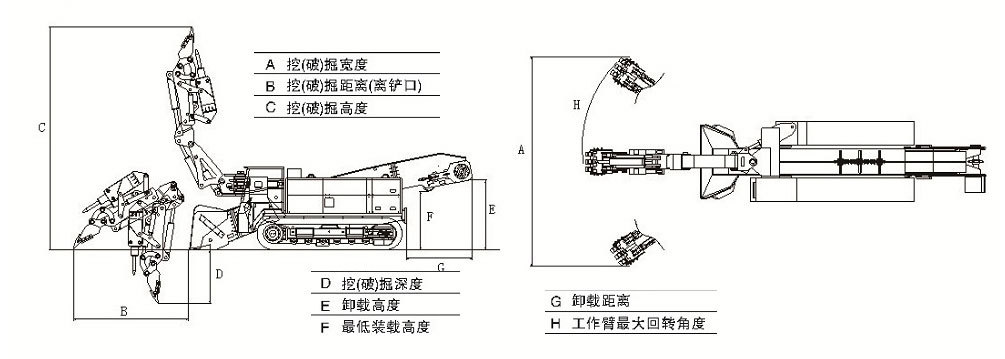

Technical Parameters

Test Items	ZWY-60	ZWY-80/37L	ZWY-100	ZWY-120	ZWY-150	ZWY-180
Loading capacity	60m³/h	80 cubic meters per hour	100 cubic meters per hour	120m³/h	150m³/h	180m³/h
Total weight	6800kg	9800kg	10800 kg	11800 kg	15300Kg	19200kg
Minimum turning radius	5m	5m	5m	5m	7m	8m
离地间隙 Clearance from the ground	220 mm	280mm	300 mm	320mm	350 mm	395 mm
Mining width	2600mm	4540mm	4500 mm	6870 mm	6870 mm	7030 mm
挖掘高度Mining height	2600 mm height can be increased	4000mm	4000 mm	3560mm	3563mm	4635 mm
Harvest distance	1500 mm	1850mm	1850mm	3000mm	3000mm	3260mm
卸载高度Discharge heiqht	1500 mm height can be increased	1600mm	1600mm height can be increased	2200mm	2200mm	2200mm
卸载距离Uninstall the distance	1500 mm extendable	1580mm	1600mm extendable	2000mm	2000mm	3000mm
挖掘深度Digging depth	800 mm	1230mm	1230mm	900mm	900mm	990mm
爬坡能力Climbing ability	≤32°	≤32°	≤32°	≤32°	≤32°	≤32°
Scraper chain speed	54 m/min	54 m/min	54 m/min	54 m/min	54 m/min	54 m/min
Total motor power	22kw	37kw	45kw	55kw	75kw	75 kw
行走速度Walking speed	0.25±5%m/s	0.25±5% m/s	0.25 ±5% m/s	0.25±5% m/s	0.25 ±5% m/s	0.25±5% m/s
Ground pressure	≤0.1 MPa	≤0.1 MPa	≤0.1 MPa	≤0.1 MPa	≤0.1 MPa	≤0.1 MPa
Rated working pressure	20mpa	20mpa	20mpa	25mpa	25mpa	25mpa
Relief valve opening pressure	20mpa	20mpa	20mpa	28mpa	28mpa	28mpa
Electrical insulation	20MΩ	20MΩ	20MΩ	20MΩ	20MΩ	20MΩ
外形尺寸Overall dimensions	Length: 5200mm (can be equipped with a breaker hammer)	Length: 6000 mm (can be equipped with a breaker)	Length: 6000 mm (can be equipped with a breaker)	Length: 9500 mm (can be equipped with a breaker)	Length: 9500 mm (can be equipped with a breaker hammer)	Length: 9500 mm (with optional crusher hammer)
	Width: 1600mm	Width: 1900mm	Width: 1980 mm	Width: 2260 mm	Width: 2260 mm	Width: 2260 mm
	Height: 1600mm	Height: 2200 mm	Height: 2200mm	Height: 2500mm	Height: 2500 mm	Height: 2500mm

Optional Components

1. Three-Section Arm
Equipped with a three-section arm (with breaker hammer), it is ideal for rapid coal tunnel excavation, portal opening, and semi-coal rock tunnel advance. The three-section arm compensates for dead zones unreachable by standard two-section arms, expanding operational range.
2. Diesel Engine
For non-coal mine applications, the diesel-powered version offers enhanced mobility for frequent relocations and long-distance tunnel operations, supporting hybrid oil-electric power configurations.
3. Cable Reel Drum
Enables automatic cable retraction during machine movement, reducing manual labor and improving operational flexibility with higher automation levels.


