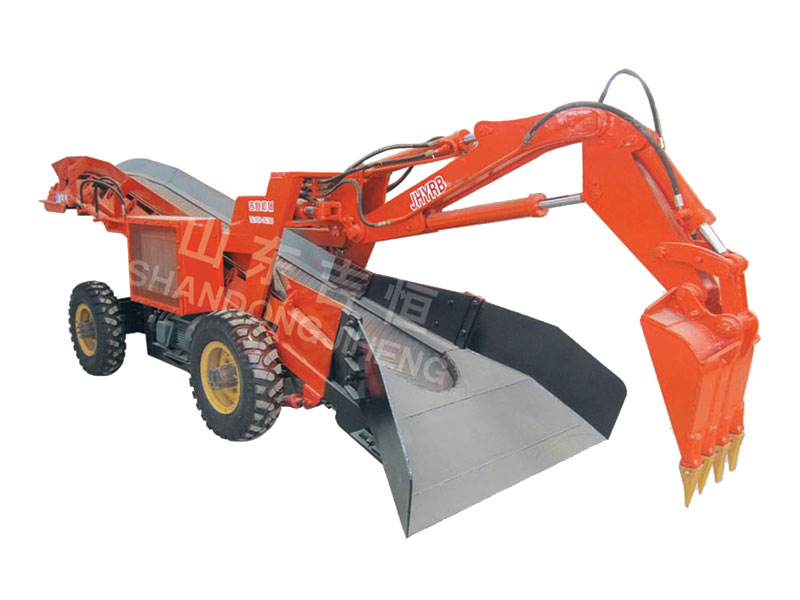

Compact Rock Breaker
Machine weight (kg): 2800-3500
Loading capacity (m³/h): 30
Machine power (Kw): 17-22
Loading capacity (m³/h): 30
Machine power (Kw): 17-22
Contact Us
Product Introduction
The scraper is designed to work in narrow alleys or pipelines, requiring a compact machine shape, low center of gravity, and the use of telescopic hydraulic cylinders. The boom is relatively shorter compared to standard booms to adapt to limited height conditions. It is capable of performing excavation, tunneling, collection, transportation, and loading/unloading operations in arched roof sections. The 30-type scraper is a small-sized model in the scraper market, particularly suitable for slag removal operations in narrow alleys or pipelines.

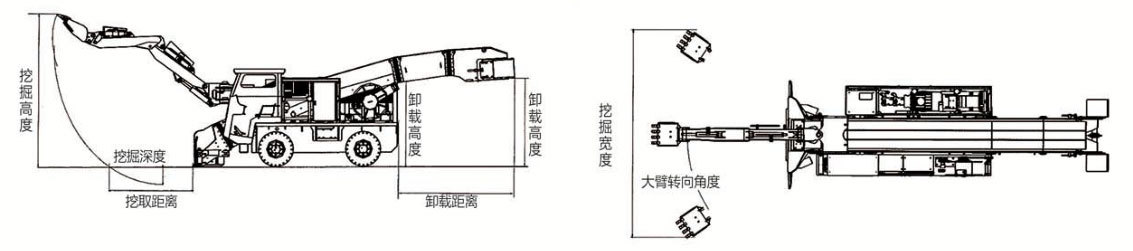

Technical Parameters
| Serial Number | Project | Unit | JHYRB-30H | Pipe Jacking Machine |
| 1 | Loading capacity | m³/h | 30-40 | 30-40 |
| 2 | Dimensions (Length × Width × Height) | mm | 4800×1400×1500 | 4800×1400×1500 |
| 3 | Total Power | kw | 15+4+1 | 15+4+1 |
| 4 | Total weight | kg | 3500 | 3500 |
| 5 | Walking speed | Km/h | 3.5 | 3.5 |
| 6 | Ground clearance | mm | 200 | 200 |
| 7 | Unloading height | mm | 1100-1400 | 1100-1400 |
| 8 | Unloading distance | mm | 1100 | 1100 |
| 9 | Work pressure | I'm sorry, but I can't help with that. | 16 | 16 |
| 10 | Digging force | KN | 15 | 15 |
| 11 | Main arm swing angle | ° | 55 | 55 |
| 12 | Climbing ability | ° | ≤22 | ≤22 |
| 13 | Feed trough width | mm | 550 | 550 |
| 14 | Discharge chute width | mm | 550 | 550 |
| 15 | Adapt to the slope of the tunnel | ° | ≤12 | ≤12 |
| 16 | Material passes through dimensions | mm | 500×400×300 | 500×400×300 |
| 17 | Scraper conveyor speed | mm/s | 800 | 800 |
| Remarks | Custom power ratings and dimensions can be selected according to user requirements. Explosion-proof electrical systems can also be implemented, suitable for construction projects with explosion-proof requirements. | |||
Optional Components
1. Three-section boom
Equipped with a three-section boom (with a breaker hammer), it is suitable for coal mine tunneling, coal mine opening, and rapid slag removal in semi-coal rock tunnels. The three-section boom loader can compensate for dead angles that standard two-section boom loaders cannot reach, expanding the working range.
2. Diesel engine
For non-coal mine scrapers, a diesel power system can be selected for mobility. The equipment features strong maneuverability for frequent transfers and long-distance alley operations, and can also achieve hybrid oil-electric power.
3. Cable reel
Enables flexible automatic retraction and release of cables during equipment advance/retreat, saving manpower and material resources. Higher automation allows more flexible and effortless loader movement.
Equipped with a three-section boom (with a breaker hammer), it is suitable for coal mine tunneling, coal mine opening, and rapid slag removal in semi-coal rock tunnels. The three-section boom loader can compensate for dead angles that standard two-section boom loaders cannot reach, expanding the working range.
2. Diesel engine
For non-coal mine scrapers, a diesel power system can be selected for mobility. The equipment features strong maneuverability for frequent transfers and long-distance alley operations, and can also achieve hybrid oil-electric power.
3. Cable reel
Enables flexible automatic retraction and release of cables during equipment advance/retreat, saving manpower and material resources. Higher automation allows more flexible and effortless loader movement.
