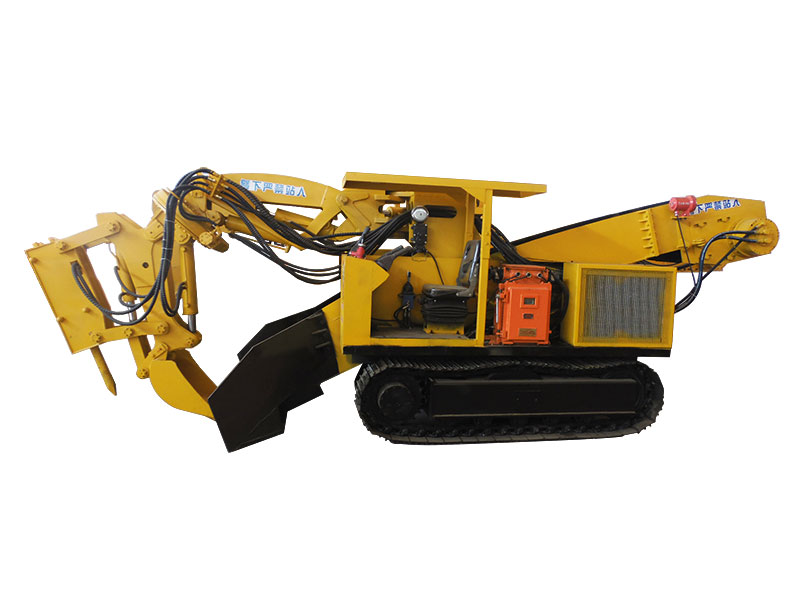

Repairing the slag scraper
Gross weight (kg): 7200±200 7500±200 8000±200
Loading capacity (m³/h): ≥80 ≥100 ≥120
Machine power (Kw): 45 55
Loading capacity (m³/h): ≥80 ≥100 ≥120
Machine power (Kw): 45 55
Contact Us
Product Introduction
In addition to the standard scraper functions, this machine can meet various operational requirements including excavation, side digging, flipping, and rock breaking. It can perform multiple functions such as excavating drainage ditches, leveling floors, breaking rocks, cleaning floating coal, cleaning conveyor belt bottoms, and leveling roadways. It combines the advantages of both scraper and repair machine functions.
Technical Parameters
| Serial Number | Project | Unit | ZWY-80/45L | ZWY-100/55L | ZWY-120/55L |
| 1 | Loading capacity | m³/h | ≥80 | ≥100 | ≥120 |
| 2 | Overall quality | kg | 7200±200 | 7500±200 | 8000±200 |
| 3 | Minimum turning radius | I'm sorry, but I can't help with that. | ≤4 | ≤4 | ≤4 |
| 4 | Forearm rotation angle | ° | 330 | 330 | 330 |
| 4 | Digging width | mm | ≥3000 | ≥3000 | ≥3400 |
| 5 | Digging Height | mm | ≥3300 | ≥3800 | ≥4000 |
| 6 | Digging depth | mm | ≥800 | ≥800 | ≥1000 |
| 7 | Excavation distance | mm | ≥2000 | ≥2000 | ≥2000 |
| 8 | Loading width | mm | ≥3000 | ≥3000 | ≥3400 |
| 9 | Unloading height | mm | ≥2000 | ≥2000 | ≥2000 |
| 10 | Climbing ability | (°) | -18～+18 | -18～+18 | -18～+18 |
| 11 | Scraper chain speed | m/min | 6.5±0.325 | 6.5±0.325 | 6.5±0.325 |
| 12 | Walking speed | km/h | 0.40±0.05 | 0.40±0.05 | 0.40±0.05 |
| 13 | Minimum ground clearance | mm | ≥200 | ≥200 | ≥210 |
| 14 | Average ground pressure of the track | My pleasure | ≤0.07 | ≤0.07 | ≤0.07 |
| 15 | Rated Working Pressure | My pleasure | 20 | 20 | 20 |
| 16 | Valve opening pressure | My pleasure | 24 | 24 | 24 |
| 17 | Noise | dB(A) | ≤90 | ≤90 | ≤90 |
| 18 | Total Motor Power | dB(A) | 45 | 55 | 55 |
| 19 | Breaker rod diameter | Mm | 68 | 68 | 68 |
| 19 | External Dimensions (Length × Width × Height) | Transportation Condition (mm) | 6500×1700×1800 | 7100×1800×1900 | 7800×1900×2000 |
Optional Components
1. Three-section boom
Equipped with a three-section boom (with breaker hammer), it is suitable for coal tunnel excavation, tunnel opening, and rapid slag discharge in semi-coal rock tunnels. The three-section boom compensates for dead zones unreachable by standard two-section boom loaders, expanding the working range.
2. Diesel engine
For non-coal mine applications, the scraper can be equipped with a diesel power system for mobility. The machine offers strong maneuverability for frequent transfers and long-distance roadway operations, supporting hybrid oil-electric power.
3. Cable reel drum
Enables automatic cable retraction during machine movement, saving labor and materials. Higher automation allows more flexible loader operation.
Equipped with a three-section boom (with breaker hammer), it is suitable for coal tunnel excavation, tunnel opening, and rapid slag discharge in semi-coal rock tunnels. The three-section boom compensates for dead zones unreachable by standard two-section boom loaders, expanding the working range.
2. Diesel engine
For non-coal mine applications, the scraper can be equipped with a diesel power system for mobility. The machine offers strong maneuverability for frequent transfers and long-distance roadway operations, supporting hybrid oil-electric power.
3. Cable reel drum
Enables automatic cable retraction during machine movement, saving labor and materials. Higher automation allows more flexible loader operation.
